XTIA XPROTO-Mini

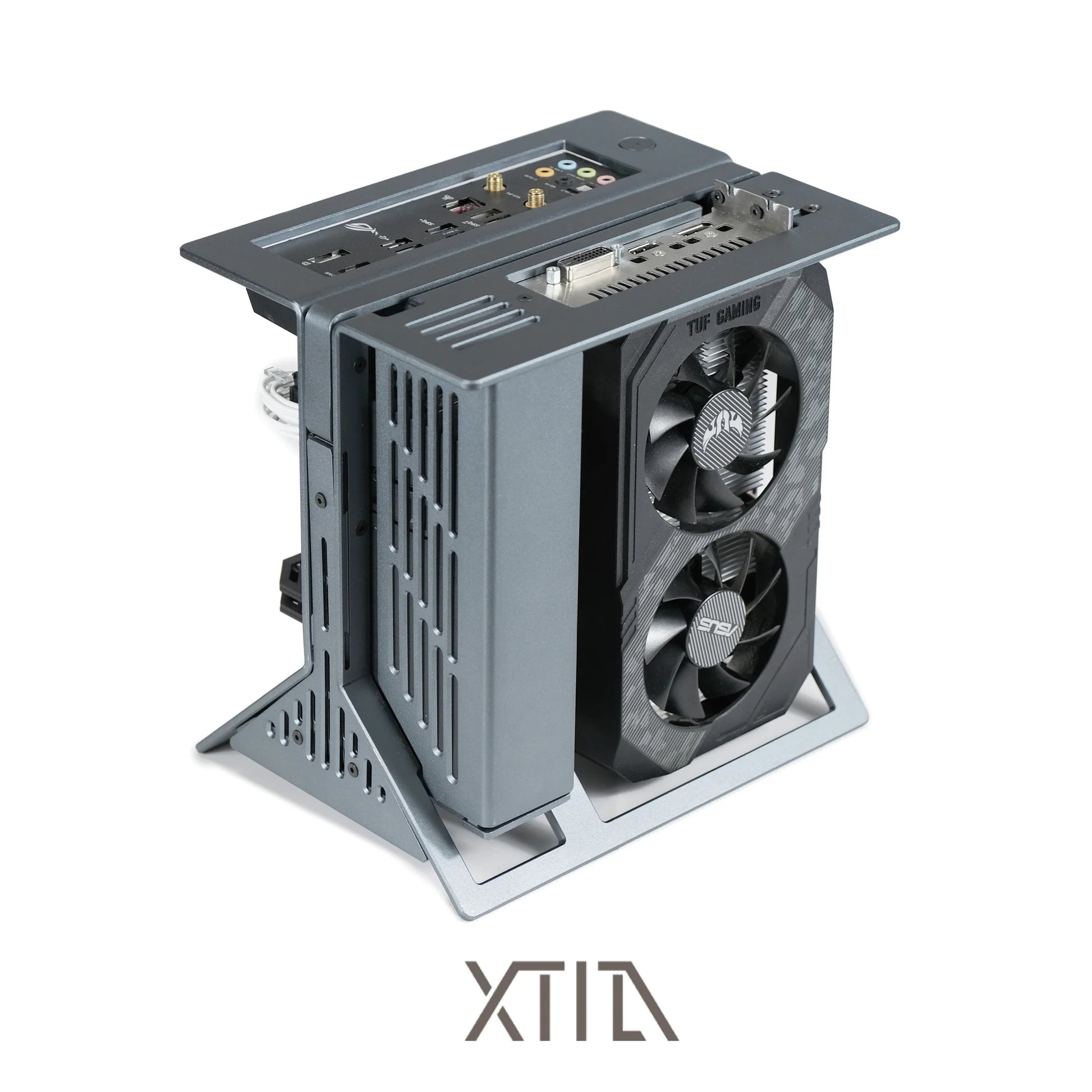

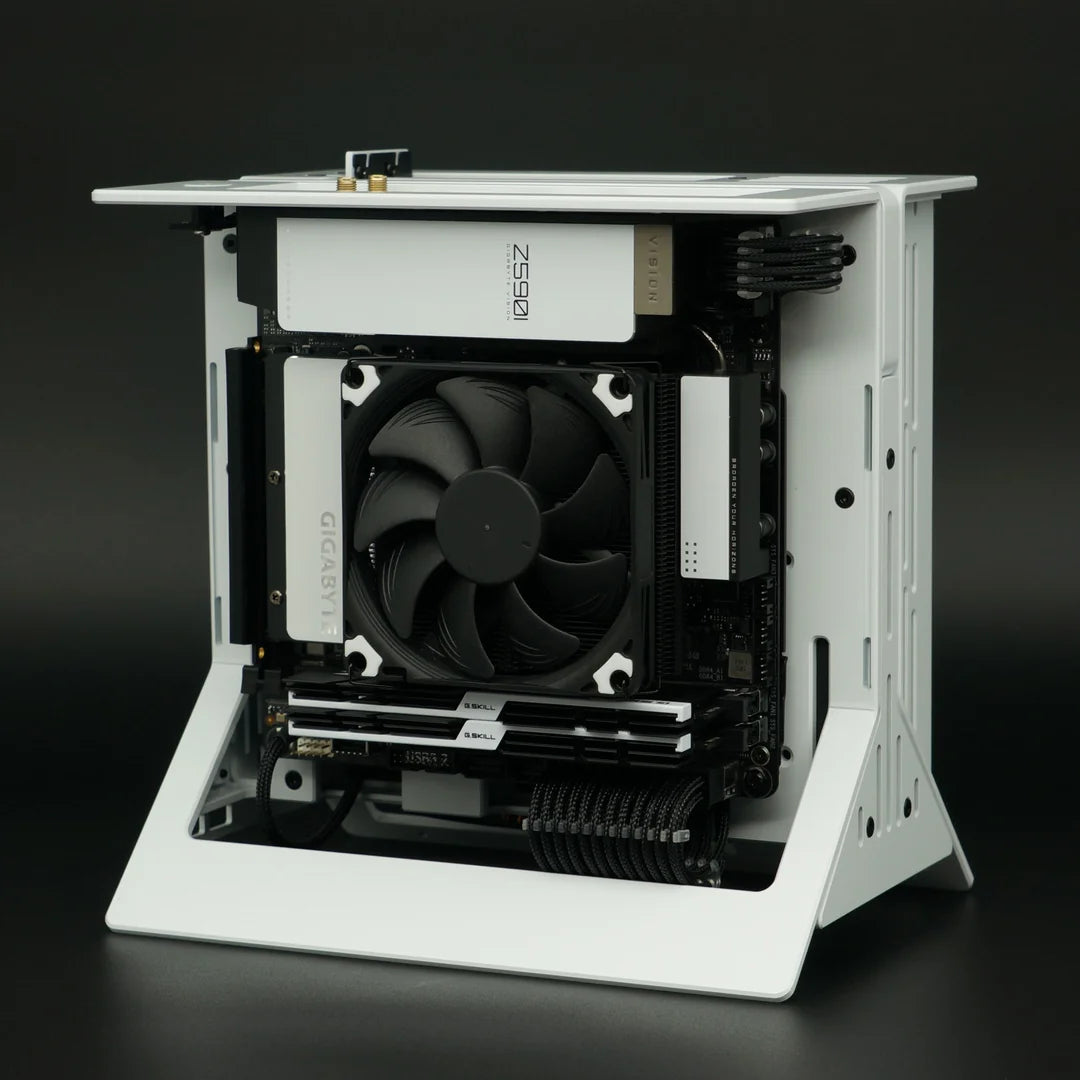

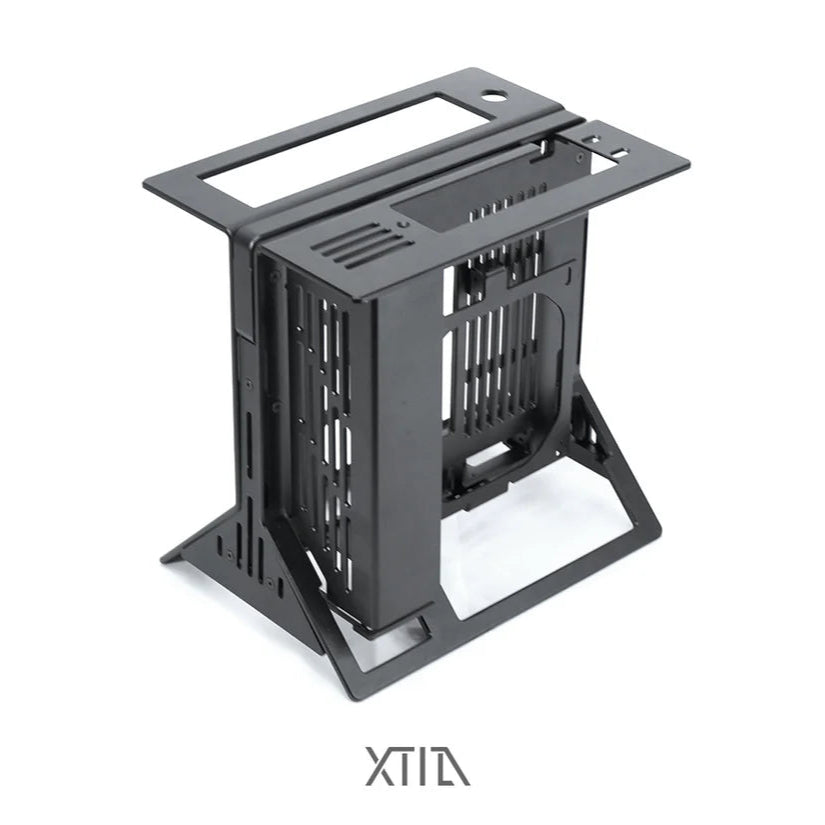

Introducing the XPROTO-Mini Open Layout Case by XTIA, a compact and versatile Mini-ITX chassis designed for enthusiasts seeking a balance between minimalism and performance. Crafted with precision, the XPROTO-Mini offers an open-frame design that ensures optimal airflow and showcases your build's components elegantly.

Key Features:

• Material: High-quality aluminium alloy with a 2mm thickness, CNC machined, and finished with 100-mesh sandblasting plus anodized black for durability and a premium look.
• Motherboard Support: Mini-ITX (17cm x 17cm)
• Power Supply Compatibility: Flex 1U PSUs up to 175mm in length; optional SFX PSU bracket available (note: using the SFX bracket may limit GPU installation space).
• Graphics Card Support: GPUs up to 215mm (L) x 130mm (H) x 55mm (W); optional bottom fan bracket available to enhance ventilation (note: using the fan bracket reduces compatible GPU length to 190mm).
• CPU Cooler Clearance: Unlimited in open-case mode; up to 50mm height with the optional Mesh U shell installed.
• Expansion Slots: 1
• Drive Bays: 1 x 2.5" SSD
• Dimensions: 263mm (L) x 130mm (W) x 210mm (H)
• Weight: 1.5 kg

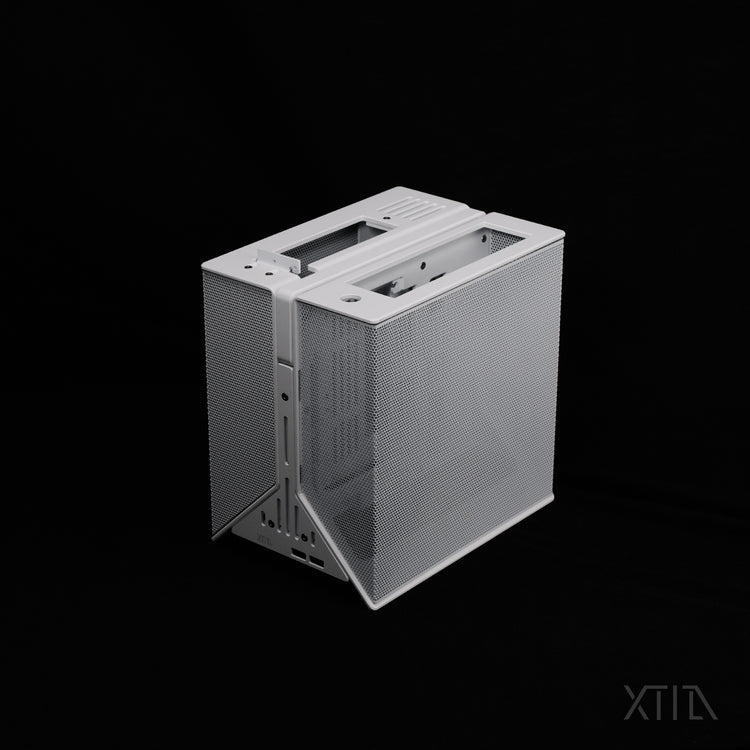

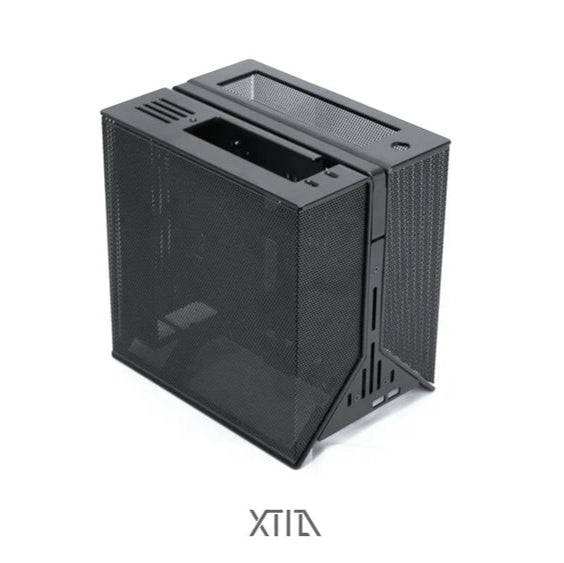

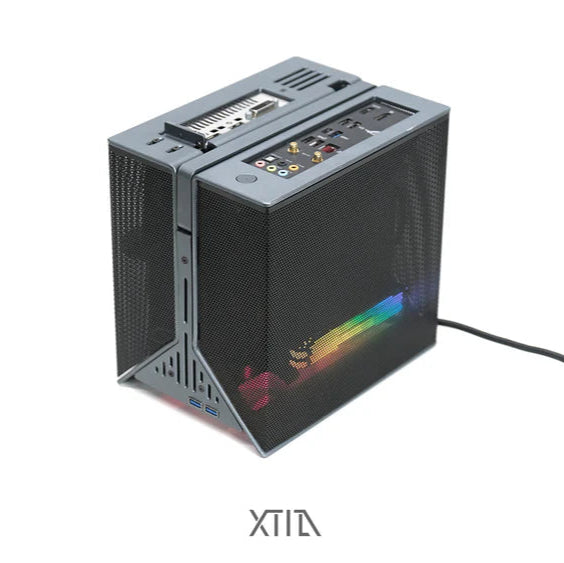

The XPROTO-Mini also features a telescopic handle integrated into the chassis for easy portability (note: the handle is not included with the Mesh U shell). For users seeking additional protection and aesthetics, the optional Mesh U shell is available in black or white.

With its minimalist design, high-quality materials, and open-frame layout, the XPROTO-Mini is the ideal case for builders looking for a clean, compact, and modern PC setup.
